Scientists have developed a transparent coating that can be applied to windows to transform them into solar panels, meaning that any window in the world can generate green energy.
This new technology uses a transparent coating that can be applied to any window to convert it into a transparent solar panel. One advantage of this technology is that it allows the window to remain transparent, enabling clear visibility through it. This research was conducted by scientists at Nanjing University in China, and they have developed a prototype. This technology can be used to generate green energy on any window in the world. The colorless coating developed by the scientists is technically known as a solar concentrator, which works in only one direction. This solar concentrator, abbreviated as CUCS, concentrates the sunlight falling on the window to the edges, where photovoltaic cells convert that light into electricity.
Better Than Existing Options:
According to the scientists at Nanjing University, the CUCS design is not only attractive but also a significant step forward for solar energy production. This new technology is superior to all existing options in terms of transparency and efficiency. This technology retains up to 64.2 percent of visible light and 91.3 percent of its original color.
How The Technology Works:

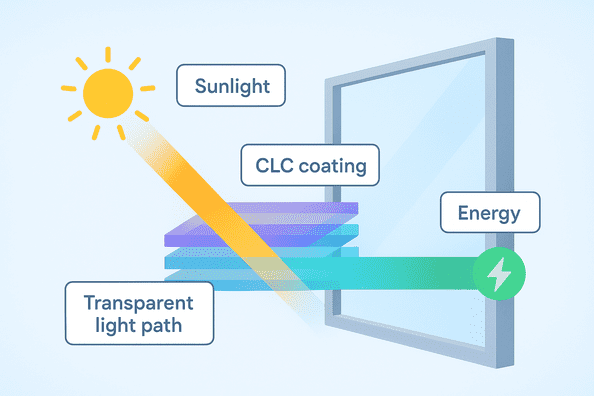

This coating works by directing sunlight to solar cells made of cholesteric liquid crystals (CLCS). These CLCs have properties that enable the necessary interaction with light as it passes through them. The coating, made of various layers of CLCS, covers all the light entering the window. Then, the coating selectively captures one wavelength of light to convert it into energy. The rest of the light passes through normally, keeping windows bright, clear, and visually appealing. In this way, the window remains transparent. According to scientists, we can create a system using cholesteric liquid crystal films that captures sunlight striking a window, concentrates it within a glass waveguide, and allows other wavelengths of light to pass through. Green laser light: The human eye is most sensitive to green light. Testing with green laser light showed an energy-to-electricity conversion efficiency of 38.1%, which was promising for this technology. However, when tested under normal conditions, this efficiency dropped to 18.1%.
Challenges Ahead:
For now, CUSC faces hurdles:
- Efficiency must be improved.
- Manufacturing techniques need refinement for large-scale application.
But researchers believe these barriers can be overcome, making CUSC a game-changing innovation for urban sustainability.
Ongoing Efforts:
Scientists have developed a prototype of this coating and believe that an inch-sized prototype could generate enough power to run a small fan. In the future, windows could be transformed into energy sources on a large scale. The scientists believe that with further development, this coating could become a cheap and effective option for window manufacturing and could be used on a much larger scale.
Key Features and Benefits of CUSC Solar Windows
1. Aesthetic Integration:
CUSC technology blends seamlessly into modern architecture. Unlike bulky rooftop solar panels, these transparent coatings allow windows to generate clean energy without compromising design, visibility, or natural daylight.
2. High Energy Efficiency:
In laboratory tests, prototypes achieved up to 18.1% efficiency under natural sunlight, demonstrating strong potential for converting everyday windows into powerful energy sources.
3. Scalable & Practical Manufacturing:
Built with cholesteric liquid crystal films, CUSC can be produced using cost-effective roll-to-roll fabrication methods. This makes the technology highly scalable for widespread adoption across skyscrapers, office towers, and residential complexes.
4. Energy Self-Sufficiency & Sustainability:
By turning glass surfaces into clean power generators, CUSC offers a pathway to reduce urban dependence on fossil fuels, cut carbon emissions, and helps buildings achieve greater energy independence.
A Glimpse into Future Cities:
As cities strive to cut carbon emissions and embrace renewable energy, CUSC offers an elegant solution: energy-producing windows that remain crystal clear. From office towers to apartment blocks, future skylines could quietly generate clean electricity while preserving modern architectural beauty.
